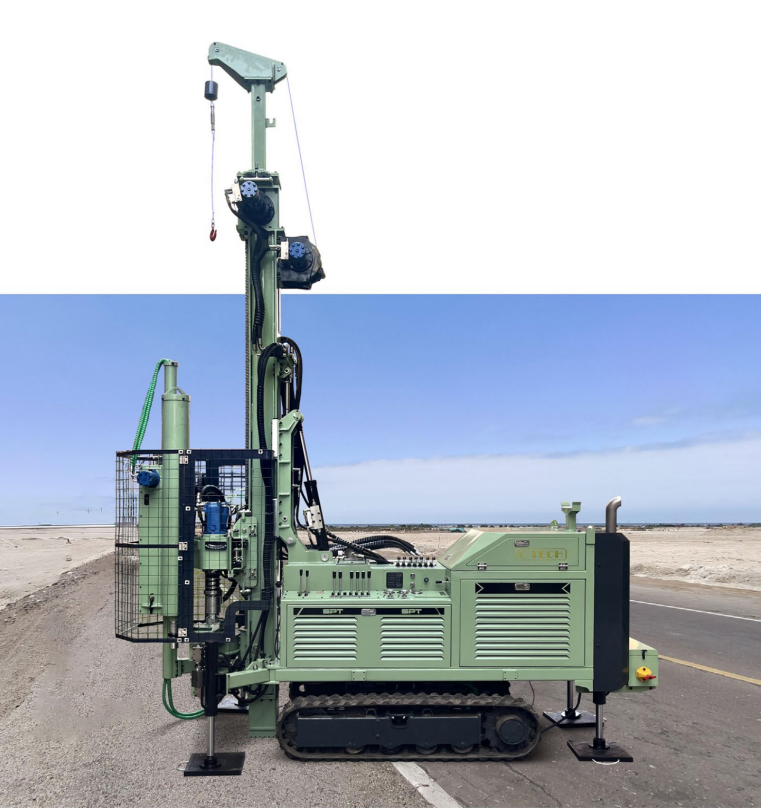

LC Heavy Dynamic Penetrometer

LC Heavy Dynamic Penetrometer is a crawler-type self-propelled multifunctional soil investigation machine. It can perform rotary/auger functions on the same drilling rig, and can also carry out the standard penetration test SPT. It is lightweight, cost-effective, fast and economical, making it an ideal tool for environmental soil sampling.

Main Features

• Can be transported on standard vans;

• Rubber tracks, four-leg foot for proper levelling at site;

• The speed of the rotary head can be switched in 4 grades.

• Integrated drop weight system and rotary drilling system.

• Equipped with hydraulic winch;

• Highly integrated industrial design;

• Easy to switch between different functions.

Applications

• Standard penetration test-SPT.

• Soil sampling with percussive core barrels.

• Rotary drilling, auger drilling.

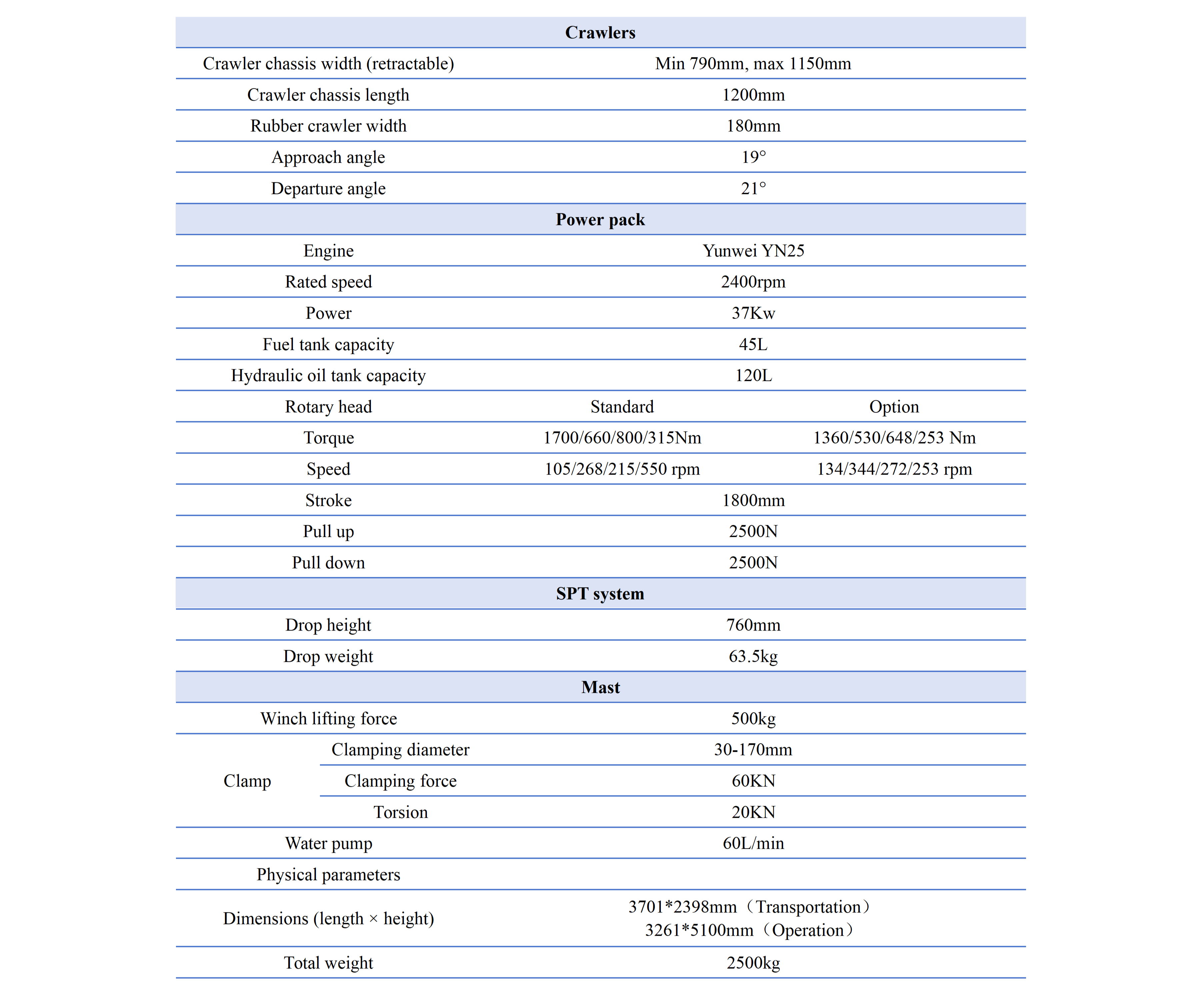

Technical Specifications
